ESD tape / Kapton tape

Product Description

ESD Tape

Features



It has high temperature resistance of 80 °C, good resistance to chemical solvents, high adhesion, softness and re-stripping without residue. It also has anti-static properties and clear transparency, and anti-static treatment on both sides.

Applications

Applicable to paste electrostatic sensitive devices, electronic passive components processing office, clean room, workstation, manufacturing, packing box paste work procedure records, electrostatic shielding sealing pockets, packaging container sealing, to ensure coating surface transfer pollutants auxiliary protection, shielding application Such as bonding and sealing articles, stacking marks and bag sealing, as well as the identification of anti-static clothing.

Specifications

Substrate PET
Backing material BOPP
Glue Pressure sensitive adhesive
Color Black,transparent
Length 36m
Thickness 0.06mm
Width 10-50mm
Surface resistance 106-109Ω

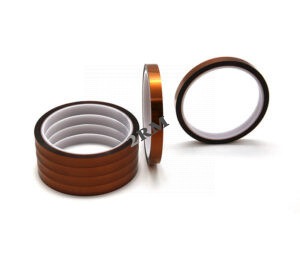

Kapton Tape

Features



High temperature tape This product has excellent electrical performance, high insulation, high temperature resistance, low temperature, acid and alkali resistance, low electrolysis, good mechanical properties, abrasion resistance, tear resistance, special adhesive treatment, strong adhesion, and is peeled off. The masking surface is free of residual glue.

Applications

Mainly used in the electronics industry, temperature resistance is usually between 120 degrees and 260 degrees, often used in painting, paint leather processing, coating masking and electronic parts process fixing, printed circuit board and high temperature processing shielding, electronic manufacturing reflow soldering Gold finger protection in wave soldering.



Specifications

Base material PET,PI
Glue Silicone pressure sensitive adhesive,Silica gel
Color Tea brown
Length 33m
Width 2mm,4mm,6mm,8mm
Base thickness 0.025mm
Tape thickness 0.06mm
Adhesion 6.5 N/25mm
Tensile strength 15 g/25mm
Fracture elongation 55%
Temperature resistance 250 ℃ for 30 minutes without residual glue
Silica gel Temperature resistance 280 ℃ for 30 minutes without residual glue
