Wrist Strap Monitor
Product Description
Wrist Strap Monitor
Features
Easy to use, microcomputer chip control, no debugging, plug and play.Good reliability, strong anti-interference ability and high sensitivity.Features such as small size, light weight, simple operation, strong real-time capability and intelligent monitoring, etc., can correctly judge the contact between ground line and table ground line.
Applications
In the electrostatic protection area (EPA), there are clear requirements on electrostatic grounding, effective electrostatic grounding shall be ensured at any time, and the wearing condition of the electrostatic wrist band of operators and the earth access shall be monitored in real time. In case of any abnormal situation, automatic alarm shall be given immediately.
Specifications
| Output | AC6V. 0.3 A |
| Power consumption | 1.8W |
| External dimensions | 61*58* 28mm |
| Weight | 62g |
| Accuracy | 1.4MΩ±5% |

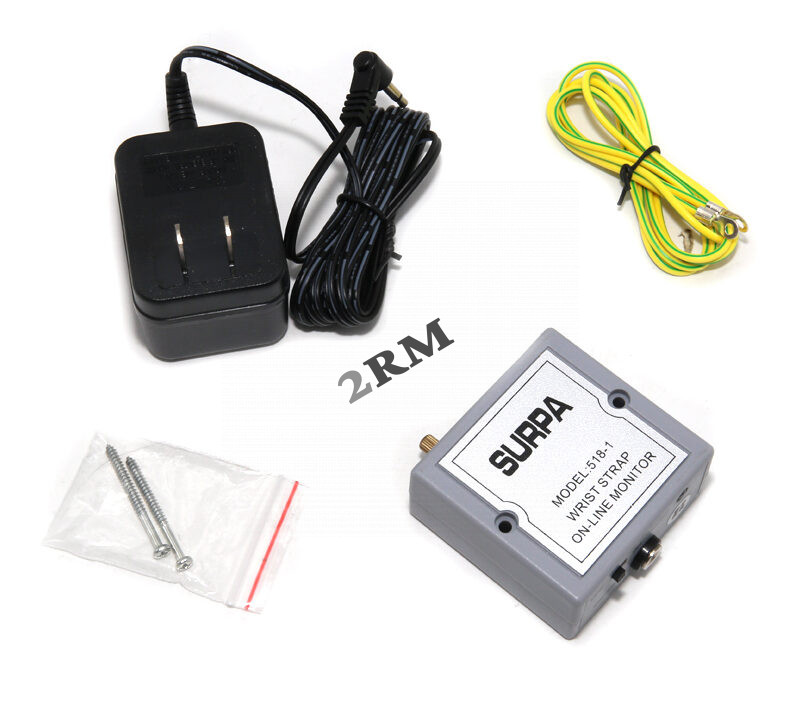

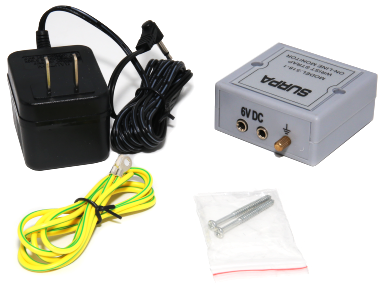

| Attachment | AC transformer,Ground wire |

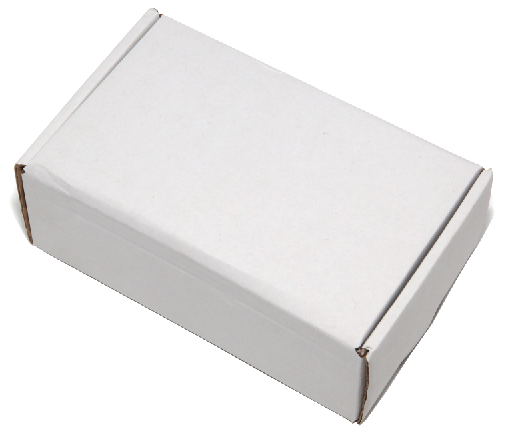

Package
